With iAssureTM integrated code quality assurance technology, minimal wear parts, all electronic auto-setup design, and fast-change ribbon cassette, the 6530 and 6330 offer maximised uptime advantage.

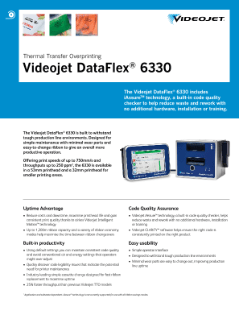

The DataFlex® 6330 is a medium speed Thermal Transfer Overprinter that can help improve uptime and provide a more productive operation by helping to reduce time spent on quality checks, waste and rework.

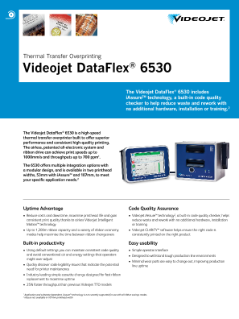

In addition to the features available in the 6330, the 6530 offers print speeds of up to 1000mm/s and throughputs up to 700 ppm*; the 6530 is a high speed Thermal Transfer Overprinter.
*Application and substrate dependent. iAssureTM technology is not currently supported for use with ribbon savings, high speed or high throughput print modes.
|Printer Mode||Intermittent and Continuous Motion||Intermittent and Continuous Motion|
|Ribbon Widths||0.8” (20mm), 2.2” (55mm) max||0.8” (20mm), 2.2” (55mm) max|
|Maximum Print Area (Width x Length)||2.1” (53mm) wide x 11.8” (300mm) long||2.1” (53mm) wide x 7.9” (200mm) long|
|Maximum Print Speed||39.4 in./sec (1,000mm/sec)||29.5 in./sec (750mm/sec)|
|Intermittent Mode:||31.5 in./sec (800mm/sec)||-|
|Minimum Print Speed||
Intermittent mode: 0.4 in./sec (10mm/sec)
Continuous mode: 0.04 in./sec (1mm/sec)
Intermittent mode: 1.6 in./sec (40mm/sec) full print quality; 0.4 in./sec (10mm/sec) draft mode print quality
Continuous mode: 1.6 in./sec (40mm/sec) full print quality; 0.04 in./sec (1mm/sec) draft mode print quality
|Bar Code Printing||EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others available upon request||EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others available upon request|
|Estimated Maximum Throughput (Single Line Code, Continuous Mode)||Up to 700 prints per minute||Up to 250 prints per minute|
|Operator Interface||TFT SVGA 800x480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support||TFT SVGA 800x480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support|
|Master/Follower Capability (Up to 4 Printers Controlled by One User Interface)||Up to four DataFlex® 6530 printers controlled via a single CLARiTY control unit||Up to four DataFlex® 6330 printers controlled via a single CLARiTY control unit|
|Standard Communication||RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations||RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations|
|Web Browser Capability||Yes||Yes|
• Standard # Optional - Not Available
*6530: The 6530 is a high speed Thermal Transfer Overprinter
**6330: The 6330 is a medium speed Thermal Transfer Overprinter
* iAssureTM technology complements existing quality control processes. It is not designed to detect all printing errors and does not read bar codes.
